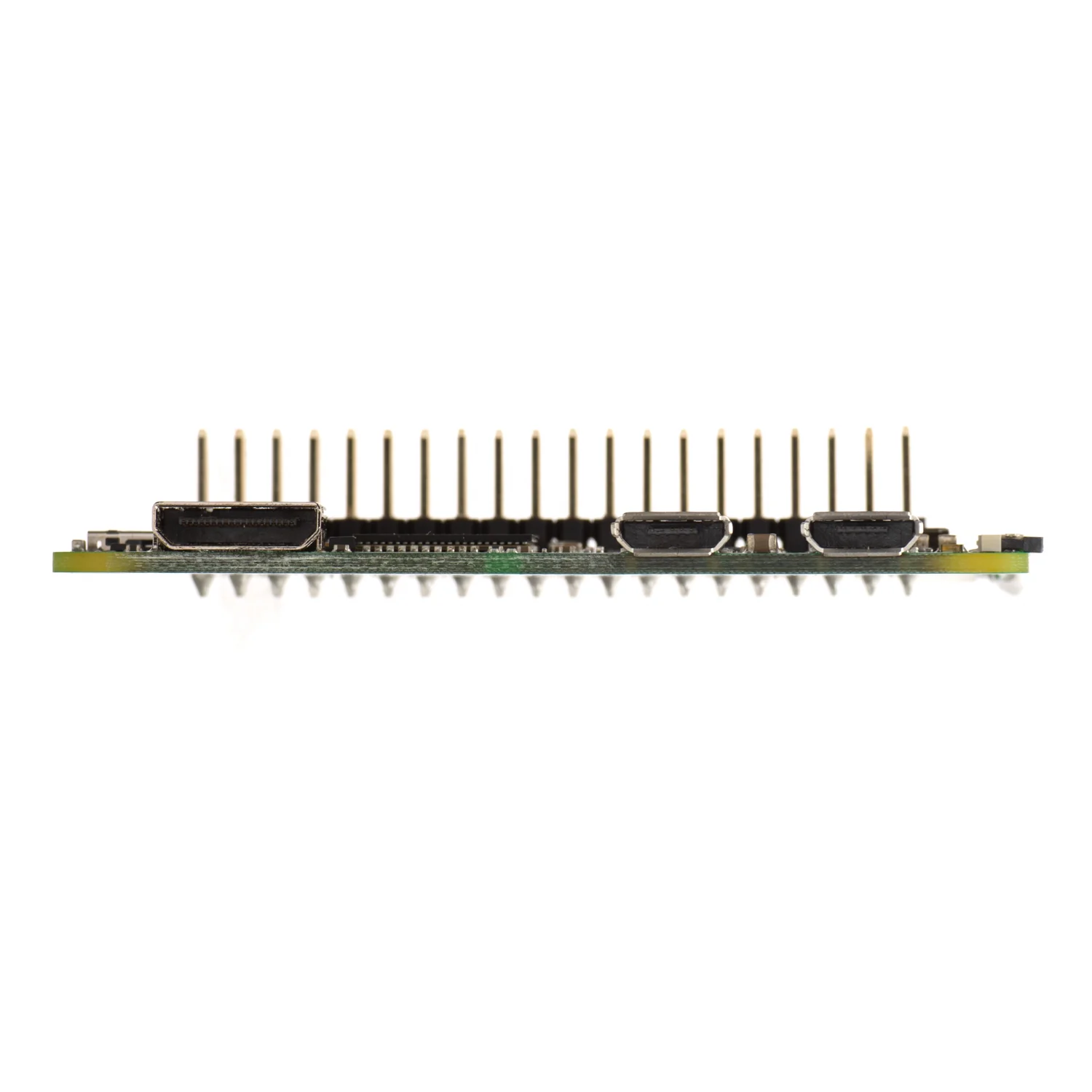

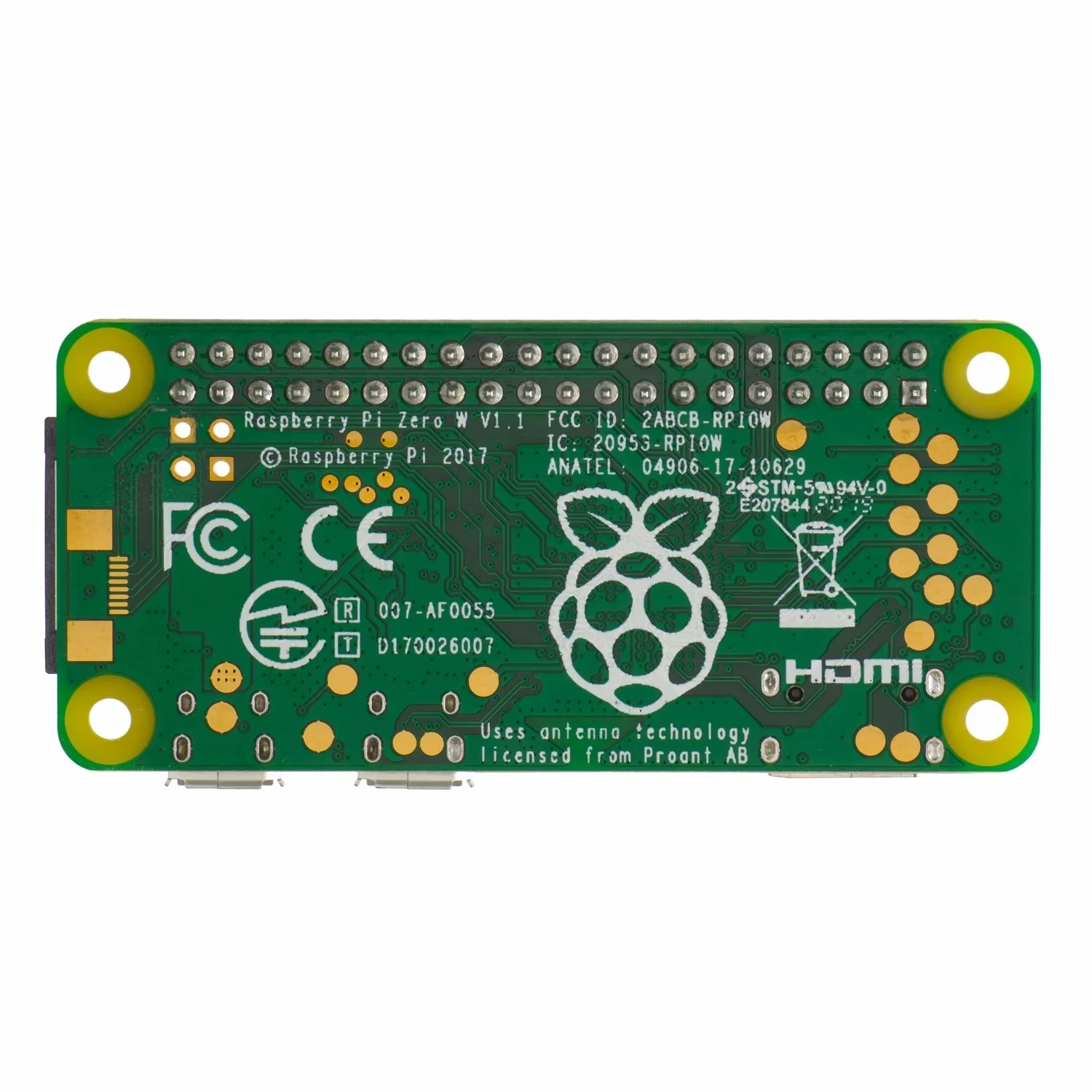

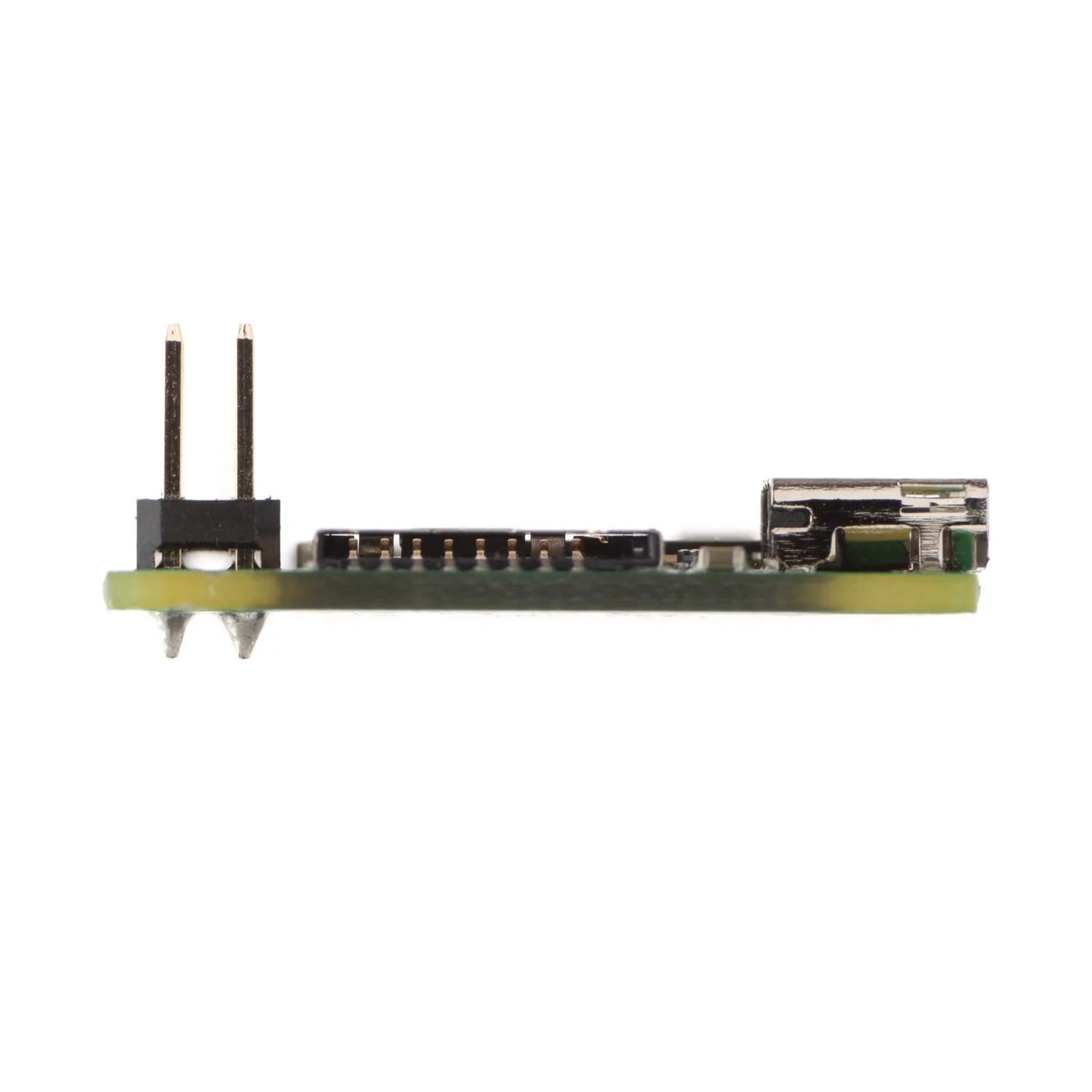

The Raspberry Pi Zero WH features professionally pre-soldered GPIO headers, ready for immediate use with HATs, breakout boards, and jumper wires. With built-in Wi-Fi and Bluetooth in the familiar ultra-compact Zero form factor, it's perfect for wireless projects without any soldering.

Key Features

• Pre-Soldered Headers – 40-pin GPIO ready for immediate use
• Built-in Wi-Fi – 802.11 b/g/n wireless LAN
• Bluetooth 4.1 – Including Bluetooth Low Energy (BLE)
• 1GHz Single-Core CPU – BCM2835 ARM11 processor
• 512MB RAM – Sufficient for lightweight applications
• Ultra-Compact – 65mm × 30mm footprint

Specifications

• Processor: BCM2835, 1GHz ARM11
• Memory: 512MB LPDDR2 SDRAM
• Wireless: 802.11 b/g/n, Bluetooth 4.1/BLE
• Video: Mini-HDMI
• USB: Micro-USB 2.0 OTG
• GPIO: 40-pin header (pre-soldered)
• CSI: Camera connector
• Dimensions: 65 × 30 × 5mm

Ideal For

• HAT and add-on board projects
• Breadboard prototyping
• Wireless IoT projects
• Projects requiring GPIO without soldering
